DuraTech Firestop Joist Shield 5" to 8"

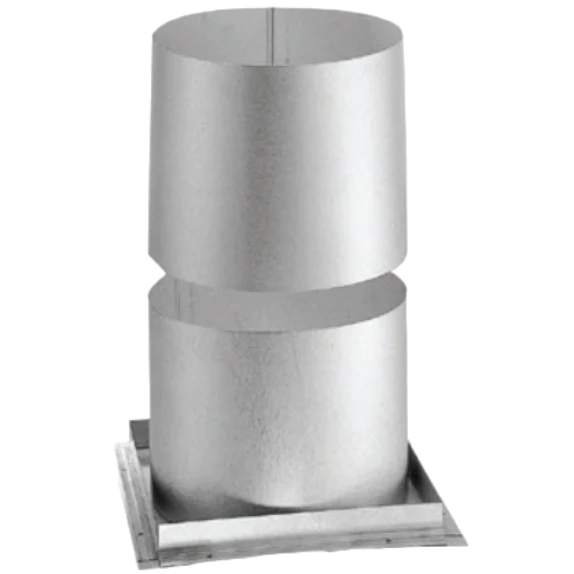

The DuraTech Firestop Joist Shield is used when the DuraTech Class A pipe is passing through a floor or ceiling where a ceiling support box is not used. The plate gets mounted to the underside of the ceiling and the sleeve is adjustable to cover the framing.
Note: The Firestop is not needed when passing through the roof decking.
Measurement Chart:
DuraTech Firestop Joist Shield 5" to 8"
| Size | 5" | 6" | 7" | 8" |
| A | 7.125" | 8.125" | 9.125" | 10.125" |
| B | 10.875" | 11.875" | 12.875" | 13.875" |
| C | 13" | 14" | 15" | 16" |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
DuraTech Firestop Joist Shield 5" to 8"
DuraTech Firestop Joist Shield 5" to 8"
The DuraTech Firestop Joist Shield is used when the DuraTech Class A pipe is passing through a floor or ceiling where a ceiling support box is not used. The plate gets mounted to the underside of the ceiling and the sleeve is adjustable to cover the framing.
Note: The Firestop is not needed when passing through the roof decking.
Measurement Chart:
DuraTech Firestop Joist Shield 5" to 8"
| Size | 5" | 6" | 7" | 8" |
| A | 7.125" | 8.125" | 9.125" | 10.125" |
| B | 10.875" | 11.875" | 12.875" | 13.875" |
| C | 13" | 14" | 15" | 16" |
Original: $136.00
-65%$136.00
$47.60Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The DuraTech Firestop Joist Shield is used when the DuraTech Class A pipe is passing through a floor or ceiling where a ceiling support box is not used. The plate gets mounted to the underside of the ceiling and the sleeve is adjustable to cover the framing.
Note: The Firestop is not needed when passing through the roof decking.
Measurement Chart:
DuraTech Firestop Joist Shield 5" to 8"
| Size | 5" | 6" | 7" | 8" |
| A | 7.125" | 8.125" | 9.125" | 10.125" |
| B | 10.875" | 11.875" | 12.875" | 13.875" |
| C | 13" | 14" | 15" | 16" |
