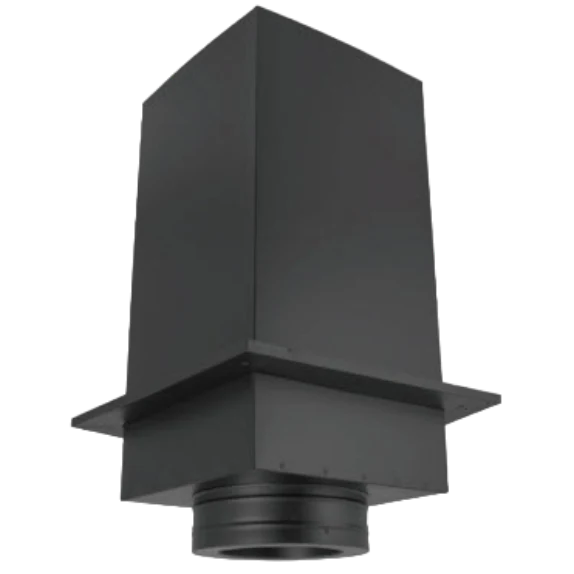

DuraTech Class A Square Cathedral Ceiling Support Box 5" to 8"
The DuraTech Class A Square Cathedral Ceiling Support Box is used to support the DuraTech Class A Chimney Pipe when passing through a cathedral ceiling. The DuraTech Chimney Pipe twist-locks into the interior of the support box providing a positive connection to the chimney pipe. The support boxes are available in 11", 24" and 36" lengths to accommodate an array of ceiling pitches. The 11" box can accommodate a flat ceiling thru a 4/12 pitch, the 24" box can accommodate a 7/12 thru 13/12 roof pitch and the 36" support box can accommodate a 14/12 thru 20/12 ceiling pitch. An adjustable 2" wide ceiling trim collar is included with each box to provide a finished look in the living space.
Use the DuraTech Single Wall Snap Lock Adapter with Trim to connect the ceiling support box to a single wall stove pipe. All sizes of the support boxes will fit between standard 16" on center ceiling joists.
Measurement Chart:
| Size | 5" | 6" | 7" | 8" |
| A | 5.25" | 6.25" | 7.25" | 8.25" |
| B | 9" | 9" | 11" | 11" |
| C | 11" | 12" | 13" | 14.25" |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
DuraTech Class A Square Cathedral Ceiling Support Box 5" to 8"
DuraTech Class A Square Cathedral Ceiling Support Box 5" to 8"
The DuraTech Class A Square Cathedral Ceiling Support Box is used to support the DuraTech Class A Chimney Pipe when passing through a cathedral ceiling. The DuraTech Chimney Pipe twist-locks into the interior of the support box providing a positive connection to the chimney pipe. The support boxes are available in 11", 24" and 36" lengths to accommodate an array of ceiling pitches. The 11" box can accommodate a flat ceiling thru a 4/12 pitch, the 24" box can accommodate a 7/12 thru 13/12 roof pitch and the 36" support box can accommodate a 14/12 thru 20/12 ceiling pitch. An adjustable 2" wide ceiling trim collar is included with each box to provide a finished look in the living space.
Use the DuraTech Single Wall Snap Lock Adapter with Trim to connect the ceiling support box to a single wall stove pipe. All sizes of the support boxes will fit between standard 16" on center ceiling joists.
Measurement Chart:
| Size | 5" | 6" | 7" | 8" |
| A | 5.25" | 6.25" | 7.25" | 8.25" |
| B | 9" | 9" | 11" | 11" |
| C | 11" | 12" | 13" | 14.25" |
Original: $343.00
-65%$343.00
$120.05Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The DuraTech Class A Square Cathedral Ceiling Support Box is used to support the DuraTech Class A Chimney Pipe when passing through a cathedral ceiling. The DuraTech Chimney Pipe twist-locks into the interior of the support box providing a positive connection to the chimney pipe. The support boxes are available in 11", 24" and 36" lengths to accommodate an array of ceiling pitches. The 11" box can accommodate a flat ceiling thru a 4/12 pitch, the 24" box can accommodate a 7/12 thru 13/12 roof pitch and the 36" support box can accommodate a 14/12 thru 20/12 ceiling pitch. An adjustable 2" wide ceiling trim collar is included with each box to provide a finished look in the living space.
Use the DuraTech Single Wall Snap Lock Adapter with Trim to connect the ceiling support box to a single wall stove pipe. All sizes of the support boxes will fit between standard 16" on center ceiling joists.
Measurement Chart:
| Size | 5" | 6" | 7" | 8" |
| A | 5.25" | 6.25" | 7.25" | 8.25" |
| B | 9" | 9" | 11" | 11" |
| C | 11" | 12" | 13" | 14.25" |
