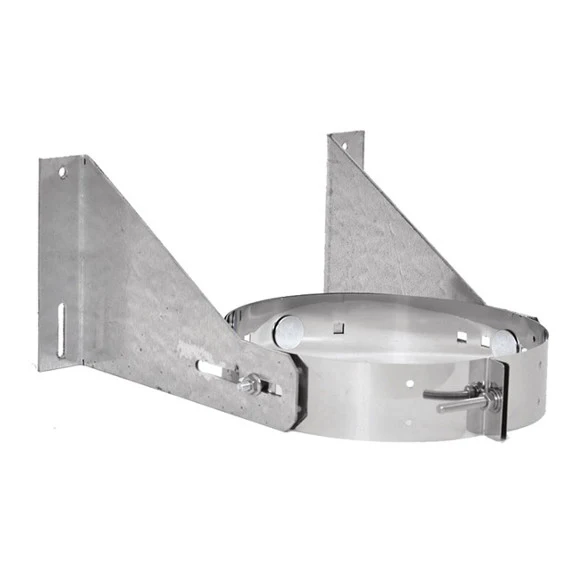

Unsurpassed in the chimney industry! When the Standard Wall Support is used on Wall Pass-Thru installations, the Wall Support provides both vertical load bearing and lateral support. The first Wall Support is fastened to the first chimney length as a base support and then, at a minimum of every 8 feet on chimney sections above. Models available in Galvalume or 304L stainless steel to fit Rock-Vent Class A pipe diameters of 5", 6", 7", 8".

Provides up to 4" of adjustment in or out from the vertical structure (for more adjustment away from the vertical structure please see our Extended Wall Support).

Measurement Chart:

Wall Support

	5”-8”
A	7.5" to 10.5"
B	2”
C	6”

*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
