Rock-Vent Class A Telescoping Roof Braces
The Rock-Vent Telescoping Roof Braces adjust from 67" to 114" and fits pipe diameters of 5", 6", 7" and 8". Constructed of galvanized with a stainless steel band and galvanized telescoping poles.

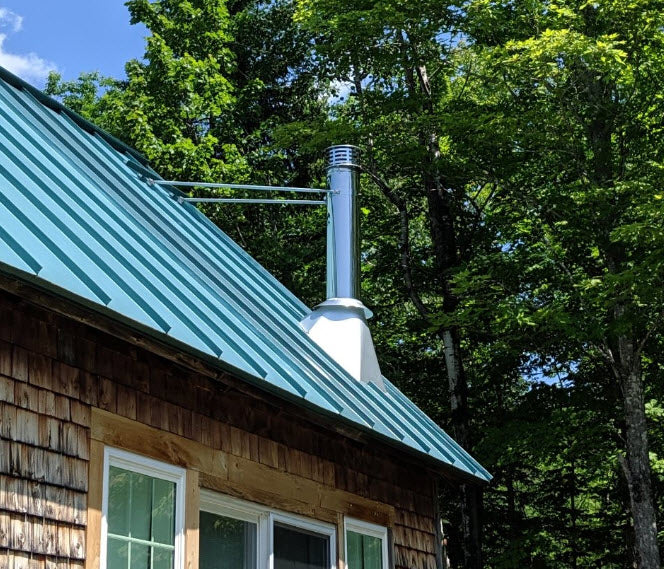

Use the Telescoping Roof Brace to brace the chimney pipe when it extends more than 5' above the roof. Mounting brackets adjust easily to any roof pitch. The chimney pipe may not extend more than 5 feet above the Telescoping Roof Brace. If this does occur, multiple Telescoping Roof Braces will be needed.
Install the locking band approximately 2/3 of the way up the chimney pipe. Adjust the legs so that they form approximately a 45 degree angle with the chimney and the two braces should be approximately 90 degrees apart. Please see manual below for additional information (page 11).
Measurement Chart:
Telescoping Roof Brace
| 5” | 6” | 7” | 8” | |
| A | 7.5” | 8.5” | 9.5” | 10.5” |
| B | 4” | 4” | 4” | 4” |
| C | 2” | 2” | 2” | 2” |
| YY | 67”-114” | 67”-114” | 67”-114” | 67”-114” |
*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
