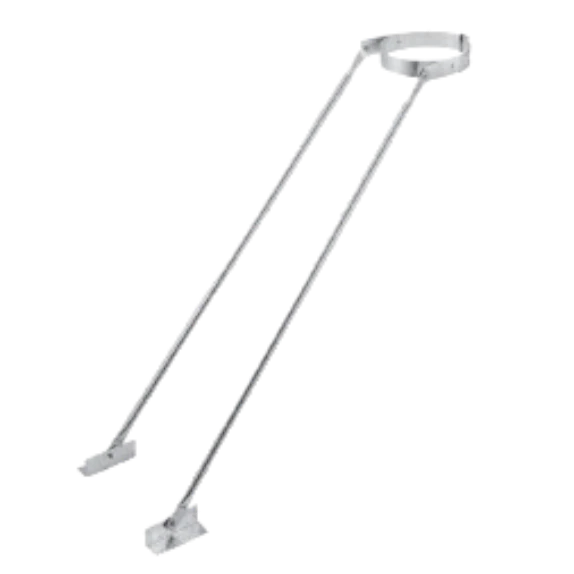

DuraPlus Extended Roof Bracket
The DuraPlus Extended Roof Bracket is used to stabilize the Dura-Vent Chimney Pipe above the roof. The Extended Roof Bracket should be installed if the chimney pipe is extending more than 4 ft. above the roof. The adjustable poles can extend from 67 in. to 114 in. for varying roof pitches.
The strap mounts around the pipe with the adjustable poles extending away from the pipe at a 45 degree angle and 90 degrees apart, then mounted to the roof with the brackets. Multiple Extended Roof Brackets may be necessary if the pipe is extending above the roof very tall on steep roofs.
Measurement Chart:
DuraPlus Extended Roof Bracket
| Size | 6" | 8" |
| A | 10" | 12" |
