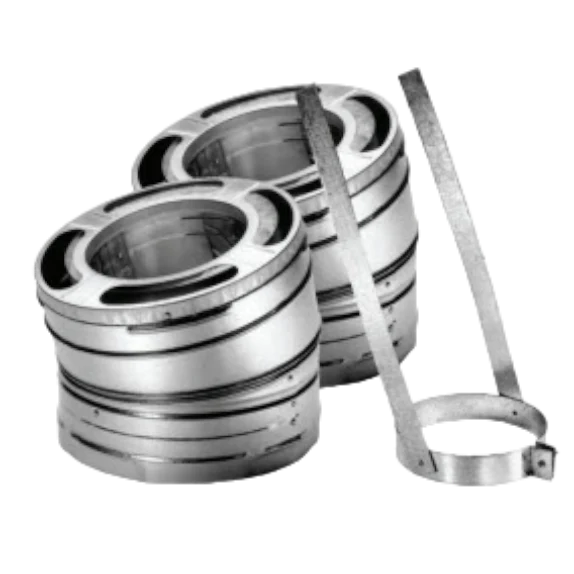

DuraPlus Class A Elbow Kit
The DuraPlus Class A Elbow Kit is used to offset the Class A Chimney Pipe when obstacles and obstructions are in the way of the pipe's path. Available in 15 and 30 degrees that include a set of two elbows and the elbow support.
The first elbow will angle the pipe in any direction and the second elbow will correct the angle back to vertical. The elbow support must attach to the top elbow to take the weight off of the first elbow. Note: Angles greater than 30 degrees are prohibited in accordance of UL 103HT standards.
Measurement Chart:
DuraPlus Class A Elbow Kit
15 Degree
| Size | 6" | 8" |
| A | 4" | 4.25" |
| B | 3.75" | 4.25" |
30 Degree
| Size | 6" | 8" |
| A | 4.5" | 5" |
| B | 4.75" | 4.75" |
